9000 BTU Mini Split AC and Heat Pump
Price: $899.49 Free Shipping via AIT worldwide
dotted line

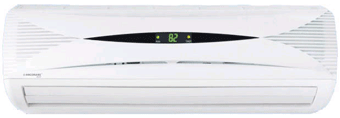

9000 BTU Mini Split AC
Air Handler (Indoor Unit) : Click for Larger Image

9000 BTU Mini Split AC
Compressor/Condensor (Outdoor Unit): Click for Larger Image
dotted line
Capacity:
Max Room Size:
Thermostat Range:
Air Handler Dimension:
Air Handler Weight:
Compressor Dimension:
Compressor Weight:
9,000 BTU's
300 Sqare Feet
61° F - 88° F.
30.9" W x 11.03" D x 6.9" H
22 Pounds
31.33" W x 8.9" D x 21.36" H
73 Pounds

PDF Download Download the Amcor Product Manual >
PDF Download Download the Amcor Installation Diagram >

9,000 BTU Mini Ductless Split AC/Heater description
Great for 200 - 300 square foot rooms, The 9,000 BTU AmcorAire Duo Split Air Conditioner - Heater is a sensible, duct-free alternative to expensive central air conditioning. Unlike bulky portable or wall units, only a small hole is needed to link the outdoor compressor/condenser to the stream-lined air-handler mounted inside.  The noisiest and largest parts (the compressor and condenser fan) are isolated outside resulting in saved space as well as less indoor sound pollution.  Split A/C’s deliver more Cooling Efficiency per BTU than any other add-on-unit and match the effectiveness of central air conditioning systems without the expense of retrofitting ductwork.
Digital Remote Included: Click for Larger Image
9000 BTU Amcor Mini Ductless Split features
  • 9,000 BTU Cooling & Heating Power
  • 5 YEAR’S FULL WARRANTY ON COMPRESSOR
  • 3 YEAR FULL WARRANTY ON PARTS - 1 YEAR ON LABOR
  • Single Zone Setup (1 Air Handler)
  • Whisper Quiet Operation
  • 24 Hour ON/OFF Timer - Sleep Mode
  • Fuctions: Cooling, Heating, Air Circulation & Dehumidification
  • Adjustable & Programmable via Included Infrared Remote
  • Filters: Washable Screen Filter, Cold Catalyst Filter
  • Technician Will Come to House if Issue Arrises within 1'st Year
  • 9000 BTU Ductless Split technical specs
    Airflow: >17,660 cf/hr
    Timer Settings: 1 - 24 Hours
    Moisture Removal: 24 Liters / Day
    Operating Range: 19° - 109°F
    Inside Noise Output: 35 – 42 dB(A)
    Outside Noise Output: 54 dB(A)
    Fan Speed Settings: (3) + Automatic
    Compressor Type: Toshiba
    Refrigerant: precR410a
    Refrigerant Charge: 33.9 oz.
    Amcor 9,000 BTU Ductless Split AC/Heater electrical
    Power Supply: 115 V / 60Hz
    Inverter: No
    SEER: 13
    Amperage: 7.2A
    UL Approval: UL/13SEER CSA
    9000 BTU Ductless 9000 BTU Mini Split Air Conditioner - Heater window kit specs
    - 25 Feet Flared Copper Tubing
    - 25 Feet Pipe Insulation
    - 4 Rubber Pads (outdoor)
    - Drain pipe (outdoor)
    - Wall Cross pipe
    - Tie Band
    - Remote w/ sleep timer
    - Remote Wall Bracket

    View the Ductless Split FAQ >
    View all Ductless Split Air Conditioners >
    View the Installation - Setup Diagram >
