This 2 Ton Ductless split air conditioner has two units: the compressor which sits outside of the home, and the air handler which is placed inside. Like any A/C you need to know how many BTUs are needed for the area you are trying to cool - heat. A mini split air conditioner is very quiet and efficient, but it is more expensive than a window or portable air conditioner. Since they are ductless, the mini split AC/Heaters avoid the energy losses associated with the ductwork of central forced air systems.

Home > Mini Splits > 2 Ton >

24000 BTU AC - Heat Pump: KSWM

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
855-382-8110
Mini Split Air Conditioners
Search BY BTU Capacity:


Inverter Systems
Single-Zone
Dual-Zone
Tri-Zone
Quad-Zone
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >

Accessories
24000 BTU Mini Split
System
Indoor Unit Remote Control Outdoor Unit Installation Kit
 System Includes:

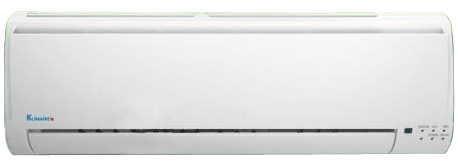

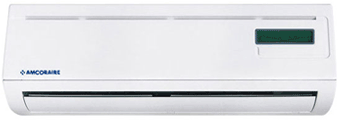

  • Indoor Unit - Air Handler

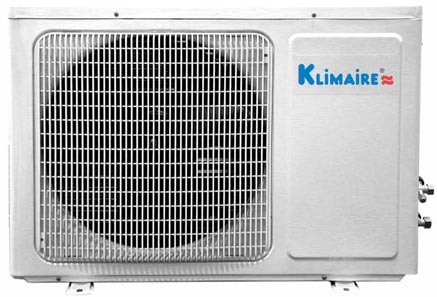

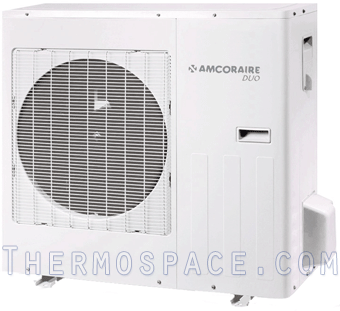

  • Outdoor Unit - Compressor
  • Digital, Multi-function LCD Remote Control
  • Installation Kit + Product Manuals
  • FOLLOW-ME TECHNOLOGY (see below)

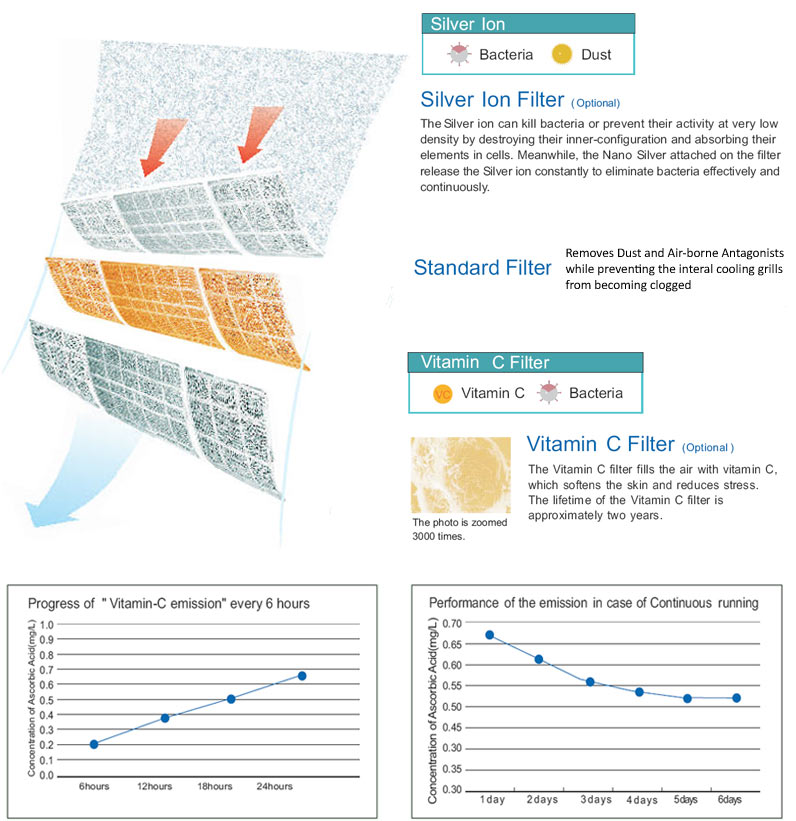

  • SILVER ION & VITAMIN-C FILTRATION
  •

    24000 BTU MINI SPLIT Air Conditioner - Heat Pump

    Price: $ Free Shipping
    Features back to the top
    Follow-Me
    klimire mini split   Self-diagnosis and Autoprotection Function: This function can electronically detect the errors and display the diagnosis by a series of flashing LEDs on the indoor unit. Then the unit will automatically switch to protection mode.
    klimire mini split   Sleep Mode: This function enables the unit to automatically increase (cooling) or decrease (heating) 1oc per hour for the first two hours, then hold steady for the next 5 hours, after that the unit will stop operation. It can maintain the most comfortable temperature and save energy.
    klimire mini split   Auto-Restart Function: When the power is off and then on, The unit automatically restores the previous function setting.
    klimire mini split   Two-direction Air Vane Technology: In cooling mode, the air vane opens counterclockwise, which directs the air horizontally. It allows for rapid and evenly distributed temperature fall. In heating mode, the air vane opens clockwise, which directs the air toward the floor. It allows for rapid and evenly distributed temperature rise.
    klimire mini split   Easy Clean Panel: The front panel may be easily removed for periodic cleaning.
    klimire mini split   Anti-Rust Cabinet: Made from electrolytic zinc steel sheet and anti-rust coated components.
    klimire mini split   Hydrophilic Aluminum Fin: In the indoor unit, it improves the cooling efficiency by enabling the unrestricted flow of condensate between the heat exchange fins In the outdoor unit, it improves the heat ing eff iciency by accelerating the defrosting process.
    klimire mini split   Trapeziform Innergroove Copper: Compared with the triangular innergroove copper, it allows more adequate refrigerant to go through, improving heat exchange efficiency and lowers power consumption.
    Filtration
    13 SEER ETL LISTED Toshiba Compressor Warranty R410A refrigerant
    Specifications back to the top
    System Specifications:
    Capacity Heating / Cooling: 24,000 BTU's
    Application Area: 800 - 1200 Square Feet
    Airflow (LOW - MED - HI): 600 - 680 - 780  (CFM)
    Moisture Removal: 2 Liters / hour
    Operating Range: 18° - 115°F
    Thermostat Range: 62° F - 86° F
    Inside Noise Output: 40 – 47 – 50  dB(A)
    Outside Noise Output: 59 dB(A)
    Fan Speed Settings: (3) + Automatic
    Filters: Washable / Silver Ion / Vitamin C
    Compressor Type: Rotary
    Compressor Brand: Toshiba
    Refrigerant / Charge: prec-R410a  / 86 oz.
    Design Pressure: 650 psi
    Dimensions - Indoor Unit: 49.2" W x 9" D x 12.8" H
    Weight - Indoor Unit: 40 Pounds
    Dimensions - Outdoor Unit: 35.2" W x 13" D x 33.9" H
    Weight - Outdoor Unit: 151 Pounds
    Electrical Info:
    Power Supply (VAC): 230/208 - 60Hz
    HSPF (Btu/w.h): 8.66
    SEER: (Energy Efficiency) 13.58
    Input Power: 2000 Watts - 2KW
    Rated Current (Cooling): 8.8 Amps
    Rated Current (Heating): 7.3 Amps
    Max Input Consumption: 2950 Watts
    Starting Current: 34.8 Amps
    Max Current - Overload Protection: 14 Amps
    Piping - Install Kit Info:
    Connection Method: Flare
    Max Pipe Length: 65 feet
    Pipe Size (Liquid Side - Gas Side): 3/8" -  1/2"
    Tubing / Piping Included: 16 Feet
    Max Elevation: 32 ft.
    Install Kit back to the top
     Install Kit Contents:
    • 16 Feet Flared Refrigeration Tubing
    • Installation Plate
    • 8 Clip Ancors w/ Mounting Screws
    • Drain Elbow (outdoor)
    • Wall Cross pipe
    • Drain Seal
    • Remote w/ sleep timer
    • Remote Wall Bracket
      Includes Install Kit Install Kit
    Available Accessories back to the top

    This Mini Split unit ships via FEDEX FREIGHT (on truck) and are divided between 3 parcels per system (install kit - condenser - air handler). These units ship out of So. Florida and are in transit with 1-2 business days of payment receipt.  Depending on where you are geographically located, transit time is usually between 4 and 7 business days.  Please provide a contact phone# upon checkout where recipient of order can be reached at.  SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR PARCEL(S).  Only ships to the lower 48 Contiguous United States.

      FEDEX FREIGHT
    Installation Overview back to the top
    BASIC OVERVIEW:  The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall.  A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit.  The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables.  The condensing unit comes pre-charged with R410A Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation.  *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split*  See installation Manual.  It is highly advised a certified HVAC technician conduct / complete installation to be eligible for warranty.  (See warranty details below > ) Installation Kit
    Installation Diagram
    following_install
    Living Room Ductless Split Setup   How will look After Installation
    Remote Controls back to the top
    Click to Download Warranty Details:  A mini split system must be installed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge.   The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies within Warranty spreadsheet are observed.  Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty).  If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost.  Damaged/Defective product will be picked up and a brand new exchange will be shipped out.
    mini split
    pdf files

    User Manual
    Installation
    Warranty
    Warranty
    Explode View
    Explode
    Explode
