| System Includes: |
|
21000 BTU INVERTER Cooling Capacity: 6k x2 +9k
21000 BTU INVERTER Heat Pump: 6k x2 +9k
22.5 SEER - R454B PreCharge - INVERTER DC
Operates in Ambient Temps down to -22F!!
No linesets or wires included with this item.
Choose desired lengths via dropdowns
1 Year Part - 5 Year Compressor Warranty >>> |
|
|
|
|
| |
|
|
|
|
|
 |
| Top Line Features: |
22.5 SEER - 11 HSPF - ENERGY STAR
Control via WIFI or Digital IR Remote
Pre-Charged w/ R454B for 75ft of Lineset
Certified by AHRI, ETL UL and C-UL
Three Air Handlers for Multi-Zone Placement
Compatible with 5 Filtration Medias
Follow-Me Function tracks Remote Location
Operates in Ambient Temps down to -22F!!
Restart IC: Settings restored Following Outage
Self-Diagnosis System Monitors Operations |
|
|
|
 |
|
 |
|
|
|
| Indoor Unit (evaporator) specs CLICK FOR FULL SPEC SHEET |
|
| Model Number |
T5HH27S-H206-E |
| Capacity |
6000 BTU |
| Air Flow (Hi/M/Lo) |
317.65 / 217.65 / 167.65 cfm |
| Power Supply |
208/230,1,60 (V, PH, HZ) |
| Input Power |
50W |
| Noise Output (Hi/M/Lo) |
36/32/23 dBA |
| Liquid / Gas |
1/4" x 3/8" |
| Weight |
22.71 / 28.88 lbs |
| Dimensions (W x D x H) |
33.7 x 9 x 11.7 inches |
|
| |
| Indoor Unit (evaporator) specs CLICK FOR FULL SPEC SHEET |
|
| Model Number |
T421S-H209-E |
| Capacity |
9000 BTU |
| Air Flow (Hi/M/Lo) |
440/380/260 cfm |
| Power Supply |
230 V / 60 Hz / 1Ph |
| Input Power |
20W |
| Noise Output (Hi/M/Lo) |
43/37/31 dBA |
| Liquid / Gas |
1/4" x 3/8" |
| Weight |
17.6 lbs |
| Dimensions (W x D x H) |
32.9"x 7.8" x 11" inches |
|
|
|

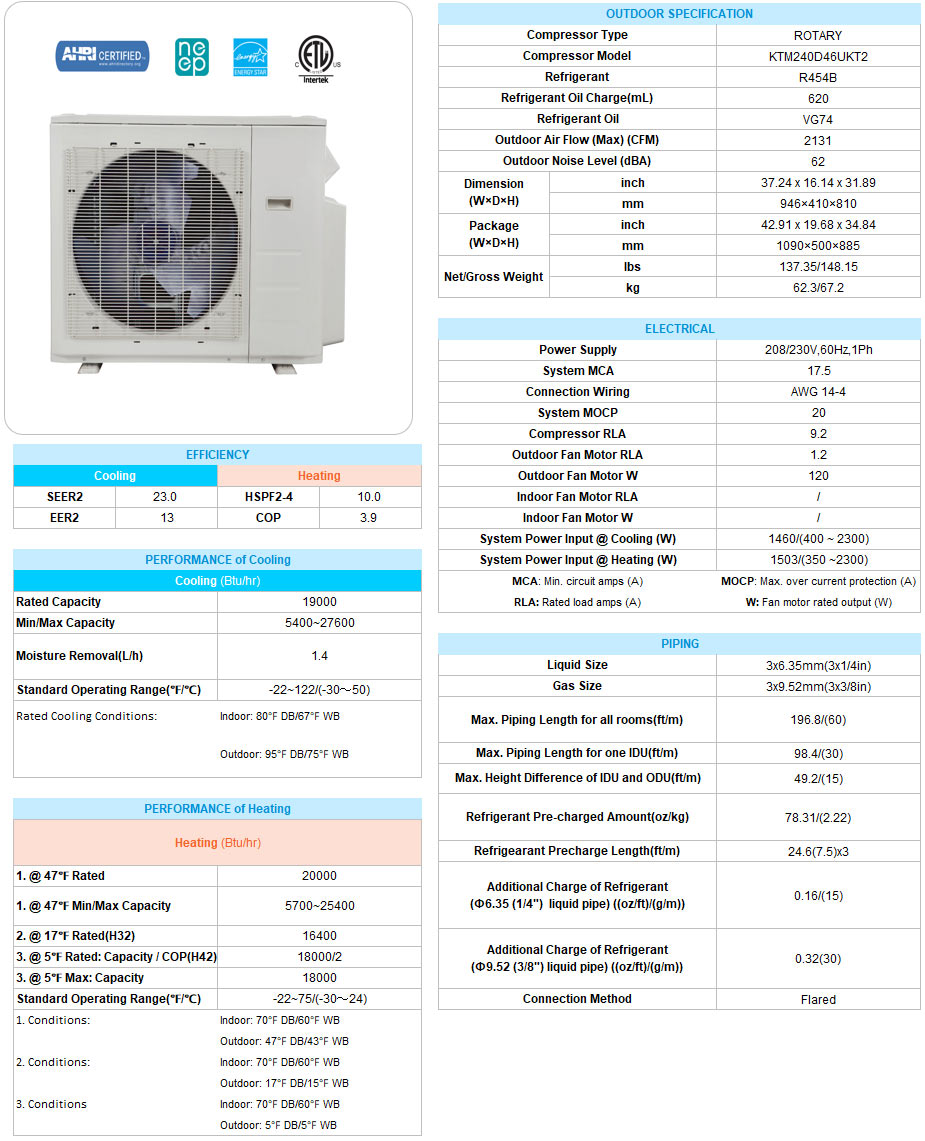

| Outdoor Unit (condenser) specs CLICK FOR FULL SPEC SHEET |
|
| Model Number |
T7HH25D-H224-C |
| Rated Capacity |
20000 BTU |
| Maximum Capacity |
27600 BTU |
| Air Flow |
2131 CFM |
| Power Supply |
230 V / 60 Hz / 1Ph |
| Max Fuse Size |
25A |
| SEER |
22.5 |
| EER |
13 |
| HSPF4 |
10.2 |
| Outdoor noise level |
62 dBA |
| Operating Temp Range |
-22~122 / -22~75 (cool / heat) |
| Refrigerant |
R454B / 78.31 oz |
| Pre-Charge Length |
75ft (25ft x 3) |
| Liquid / Gas |
1/4" x 3/8" (3) |
| Max Lineset Length (1 zone) |
98 ft |
| Max Lineset Length (all zones) |
197 ft |
| Compressor Brand |
TOSHIBA - GMCC |
| Weight |
137.25 lbs |
| Dimensions (W x D x H) |
37.24 x 16.14 x 31.89 inches |
|
|

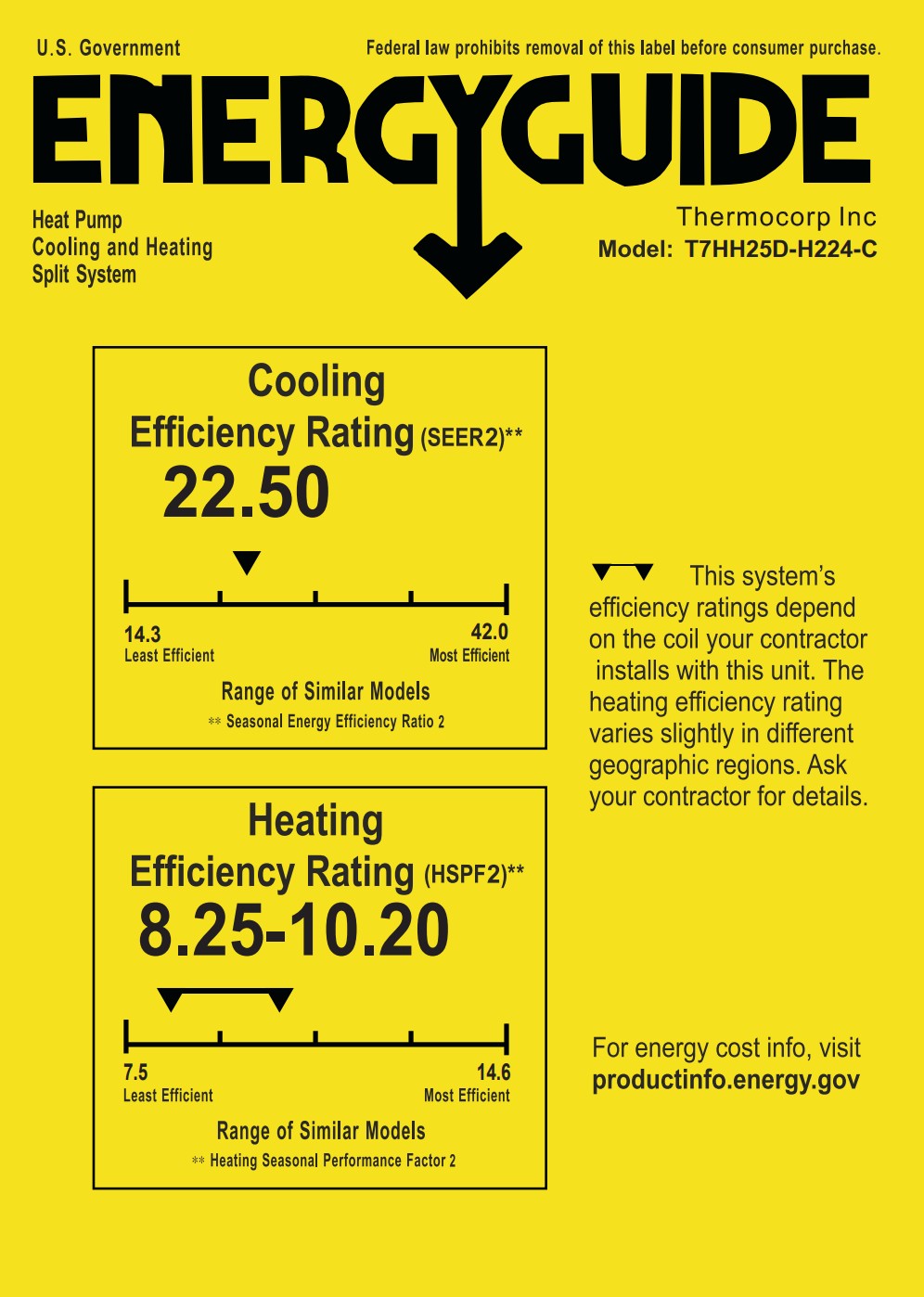

| CLICK TO VIEW ENERGY LABEL >>> |
|
|
|
|
| |
|
|
 |
| |
 |
|
|
|
| BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling. *Although the installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini split* See Installation Tip. A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. See warranty details below > |
|
 |
|
|
 |
|
|
|
|
|
| 5 YEAR COMPRESSOR WARRANTY - 1 YEAR PARTS WARRANTY. Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for product Warranty. Damage resulting from failure to use, install or maintain the product in a manner consistent with our/manufacturer's recommendations shall render the warranty void. Thermospace.com, at its option, may request a report from a qualified technician prior to honoring a warranty claim. We shall not be responsible for faulty installation, operation or maintenance of the product. It is the responsibility of each purchaser to determine whether the particular product is compliant with and permissible for use pursuant to the applicable rules, codes and/or regulations. if any, and suitable for particular and/or intended use and/or operation therein. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenario, if you come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge. If the compressor is defective, a BRAND NEW replacement will be shipped out. If the indoor unit is defective a BRAND NEW indoor unit will be sent out free of cost. (labor charges incurred will not be covered under this warranty) |
|
|
|
|
 |
|
SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS! |
|
 |
|
|
| Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Oak Park, Michigan and are palletized onto a single skid. Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order. System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices. Additional freight for Canadian registries is usually around $150. (import and duties may apply). |
|
|
 |
|
|
  |
