| System Includes: |
|
| 36,000 BTU Cooling Capacity: 12k + 12k + 12k
36,000 BTU Heat Pump: 12k + 12k + 12k
22 SEER - R454B PreCharge - INVERTER DC
Operates in Ambient Temps down to -22F!!
Wall mounted thermostat included
Add linesets & wire using dropdown menus
1 Year Part - 5 Year Compressor Warranty >>> |
|
|
|
|
| |
|
|
|
| *When all air handlers are running simultaneously at full capacity, the total combined BTU output is limited to that of the outdoor condenser. Rated Output is not the same as Maximuim Output. View Calculation Table in Specification sheet section of listing for more info |
|
|
|
 |
| Top Line Features: |
24 SEER - 11 HSPF - ENERGY STAR
Control via WIFI, Thermostat or Digital Remote
Accomodates Indoor Capacity up to 48000 BTU
Pre-Charged w/ R454B for 100ft of Lineset
Certified by AHRI, ETL UL and C-UL

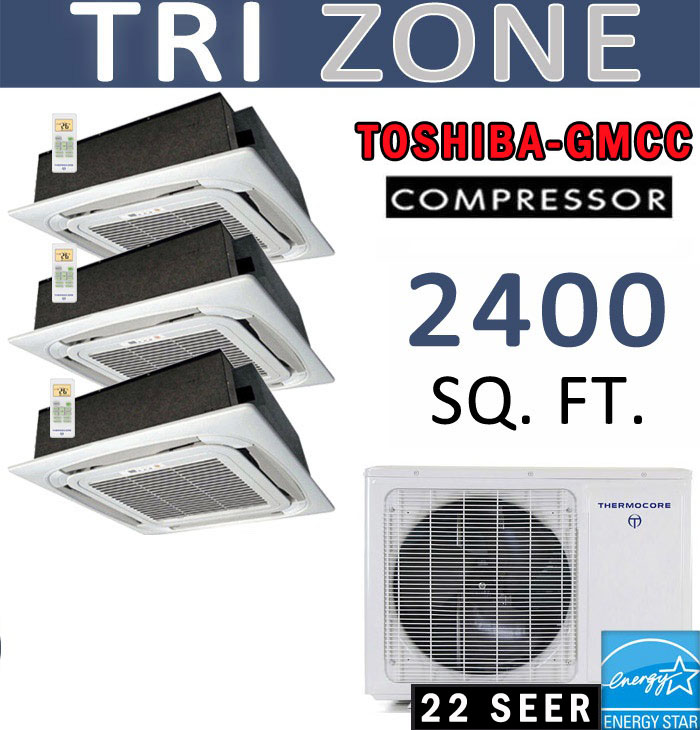

Three Air Handlers for Multi-Zone Placement

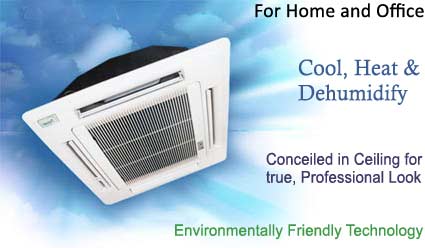

Ceiling Cassette Recesses Into 24" Ceiling
Follow-Me Function tracks Remote Location
Operates in Ambient Temps down to -22F!!
Restart IC: Settings restored Following Outage
Self-Diagnosis System Monitors Operations |
|
|
|
 |
|
 |
|
|
|
|
|
|
|
 |
|
|
| WHAT IS DC INVERTER? |
|
DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. As known, the current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result different running speeds of the compressor. YMGI Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter air conditioners bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Contioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.
Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly. Once the set temperature is reached, it slows down and adjust its capacity to counter the heat loss or heat gain of the building. By this way it will maintain a constant temperature. |
|
|
|
|
|
 |
| |
|
|
 |
|
|
|
| BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling. *Although the installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini split* See Installation Tip. A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. See warranty details below > |
|
 |
|
|
 |
|
|
|
|
|
| 5 YEAR COMPRESSOR WARRANTY - 1 YEAR PARTS WARRANTY. Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for product Warranty. Damage resulting from failure to use, install or maintain the product in a manner consistent with our/manufacturer's recommendations shall render the warranty void. Thermospace.com, at its option, may request a report from a qualified technician prior to honoring a warranty claim. We shall not be responsible for faulty installation, operation or maintenance of the product. It is the responsibility of each purchaser to determine whether the particular product is compliant with and permissible for use pursuant to the applicable rules, codes and/or regulations. if any, and suitable for particular and/or intended use and/or operation therein. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenario, if you come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge. If the compressor is defective, a BRAND NEW replacement will be shipped out. If the indoor unit is defective a BRAND NEW indoor unit will be sent out free of cost. (labor charges incurred will not be covered under this warranty) |
|
|
|
|
 |
|
SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS! |
|
 |
|
|
| Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Oak Park, Michigan and are palletized onto a single skid. Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order. System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices. Additional freight for Canadian registries is usually around $150. (import and duties may apply). |
|
|
 |
|
|
  |
|
