| Main View |
Side View |
Front View |
Rear View |
|
|
 |
|
Cooling Capacity:
Heating Capacity - Electric:
Max Room Size:
Dimensions (HxWxD):
Weight:
|
|
25,000 BTU's
16,000 BTU's
1500 square feet
18.6" x 26.5" x 26.5"
130.9 lbs. |
|
|
|
|
| |
 |
• Window Air Conditioner
• AAA Batteries (2)
• Top Mounting Rail
• Foam Top Mounting Rail Seal Strip
• Accordion Panels (2)
• Side Retrainer (2)
• Window Sash Seal
• Foam Seal for Bottom Rail
• Owner’s Manual
|
|
|
|
| |
| CLICK FOR DETAILED SPEC SHEET |
|
|
 |

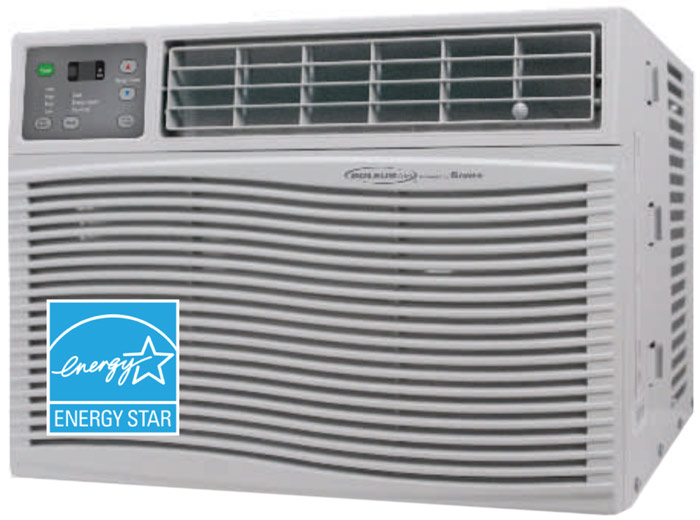

| The Thermocore T2-WAC-25HCE features an impressive cooling of 25,000 BTU's and electric heating capacity of 16,000 BTU resulting in eneough capacity to cool or heat a 1500 square foot area. Includes 3 fan speed settings, 4-way directional air-louvers, independent fan and dehumidifier functions, a multi-function remote control, and much, much more! |
|
|
|
 |
| Brand New w/ 1 Year Factory Backed Warranty.
Targeted Cooling: 4-Way Louvers Direct Air Where Needed.
Follow me Technology: Detects Temperature from Remote Location.
Three Fan Speeds: Multiple Fan Settings Deliver Air at Desired Speed.
Multi-Function Remote Control: For Convenient Operation.
Digital Thermostat: Electronic Temperature Control w/ LCD Display.
Environmentally Friendly: Uses Industry Standard ECO-Friendly R-410A.
Auto / Sleep Timer: Programmable Timer Can Be Set From 1 - 24 Hours.
Cleaner Air: Washable Filter Collects Dust Particles & Prevents Bacteria.
Dehumidifier Capabilities: Removing Upto 189 Pints Of Moisture / Day!
Additional Features: Slide-Out Chassis, Auto Restart, ECO-Mode. |
|
|
|
|
|
 |
| Model: |
Thermocore T1-WAC-24HCE |
| Cooling Capacity: |
25,000 BTU |
| Heating Capacity: |
13,000 - 16,000 BTU |
| Compressor Brand: |
Toshiba - GMCC |
| Coverage Area: |
Up To 1500 Square Feet |
| Efficiency: |
9.4 EER |
| Dehumidification: |
2.7 Liters Per Hour |
| Auto Timer: |
Settings From 1 ~ 24 Hours |
| Air Flow (CFM): |
420/470/510 (low/med/high) |
| Noise Level: |
< 64 dbA |
| Refrigerant (charge): |
R-410A (36.7 oz) |
| Dimensions: |
18.6"H x 26.5"W x 26.5"D |
| Weight: (Net/Gross) |
130.9 / 146.5 lbs. |
|
|
 |
| Power Supply: |
230/208V ~ 60Hz |
| Plug Type: |
NEMA 6-30P |
| Cooling Power Output: |
2660/2628 Watts |
| Heating Power Output: |
5100/4200 Watts |
| Cooling Power Current: |
11.3/12.4 Amps |
| Heating Power Current: |
22.5/20.0 Amps |
|
|
|
|
 |
| Window Kit Type: |
Panel |
| Min Window Width: |
31 in. |
| Max Window Width: |
42 in. |
| Min Window Height: |
19.5 in. |
|
|
|
|
|
| Remote |
 |
|
|
| |
| Power Requirements |
 |
| Type: NEMA 6-30P |
| Voltage: 230VAC |
| Current: 11 > 12.4A |
|
|
| |
| System Dimension |
 |
| Height: 18.5 in. |
| Width: 26.5 in. |
| Depth: 26.5 in. |
|
|
| |
| Window Requirements |
 |
| Min. Height: 19.5 in. |
| Min. Width: 38 in. |
| Max Width: 42 in. |
|
|
|
|
|
|
|
